Power transformer is an important electrical equipment in the power system. Once a fault occurs during operation, it will cause serious consequences to the power system. The iron core of a transformer in normal operation is grounded at a single point. If two or more points are grounded at the same time, a current loop will be formed between the iron core and the earth, and the current can reach dozens of amperes, which will cause local overheating of the iron core or even burn. Finding the latent fault of the transformer as soon as possible is the main means to ensure the safe operation and normal maintenance of the transformer.

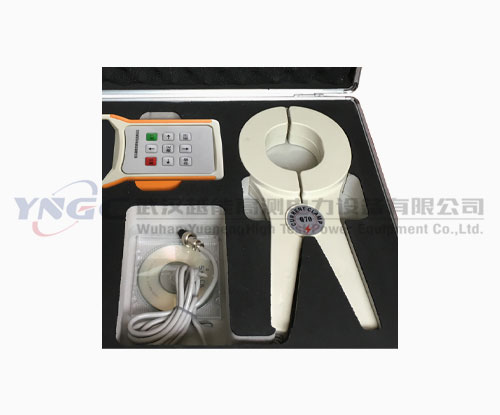

YNXDL-H transformer core ground current tester can effectively solve these problems. It is widely used to test the leakage current of iron cores and clamps of electrical equipment such as transformers and reactors in substations and power plants.

* The use of clamp-type current transformers is convenient for on-site operation;

* Strong anti-interference ability to ensure accurate and reliable data;

* With high-speed microprocessor, real-time display of measurement data and waveforms;

* Use FFT transformation, digital filtering and other algorithms for data processing;

* It has an alarm function for leakage current exceeding limit, and the alarm current can be set;

* Adopt a 3.5-inch 320*240 true color LCD display, Windows menu operation prompts;

* It has both smart touch and key control methods;

* Built-in large-capacity non-volatile memory, which can store 400 sets of measurement data;

* Built-in high-precision real-time clock function: date and time calibration can be performed;

* Built-in 2500A rechargeable lithium battery, standby time of more than 8 hours, convenient for on-site use;

Measuring range: current: 0～10000mA

Frequency: 45～65Hz

Resolution: 0.001mA

Measurement accuracy: ±1% or ±0.1mA

Dimensions: 203mm×112mm×38mm

Instrument weight: 0.5kg
